Angle Drill

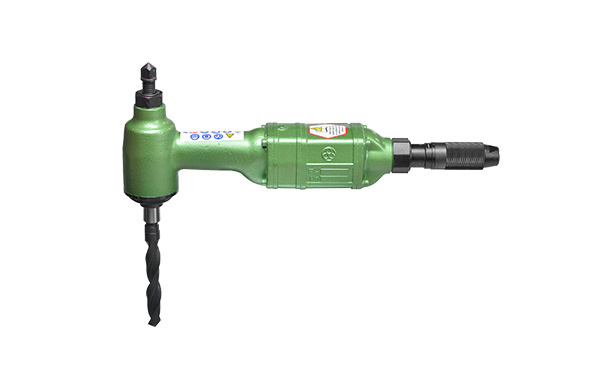

DA21-022 Pneumatic Angle Drill

Drilling capacity (steel):22mm, 8.0kg

Ex I M1 Ex ia T6 Ma

Drill Capability (Steel): 22mm

Reaming Capability: 22mm

Load Speed: 400rpm

Torque: 80N·m

INQUIRY BROCHURE

Description Technical data Tool KIT Accessories

Description

Application

Ideal in punching holes on steel and concrete, especially in narrow space.

Features

● Stepless

The air flow is adjustable.

● Portable design

Aluminum alloy series, light in weight, suitable for on-site operation and narrow space.

● Pneumatic motor

High ex-proof performance, sparkle-free, suitable for explosive and flammable environment.

● Drill bit

Different drill bits chosen by different requirements.

Technical data

Specifications

Manufacture model	DA21-022
Drilling capacity (steel) (mm)	22
Reaming capacity (mm)	22
Load speed (rpm)	400
Torque (N·m)	80
Air consumption (m³/min)	1
Hose inside dia. (In)	1/2
Feeding length (mm)	35
Air interface (In)	1/2
Morse taper	2
Motor output (kw)	1
Weight (kg)	8

Scope of delivery

Package

Standard Kit: Angle Drill + Drill bits*2 + Assembly tool + Tool case

Accessories

Taper-shank drill accessories

Drill bits for Balance Drill and Angle Drill

● Alloy twist bit:

Used for punching holes on metallic and nonmetallic work pieces.

● Carbide-tipped blade twist bit, carbide-tipped blade twist bit unit (with cooling system):

Used for punching holes on metallic and nonmetallic work pieces.The main body is reusable and changeable alloy blades make it lower using cost.

● Carbide-tipped core bit, carbide-tipped core bit unit (with cooling system):

Used for punching holes on metallic and nonmetallic work pieces;

The main body is reusable and changeable alloy blades make it lower using cost;

Equipped with water cooling system to reduce consumption of twist bit, and improve the drilling efficiency.

● Morse taper shank sleeves of core drill:

Used for switching different taper of drill bits.

Drill Bit	Manufacture Model	Order No.	Taper shank/ Drilling Dia.
Alloy Twist Bit	DB81-2-XX	2203 1212-26	MT2/15-23mm
Alloy Twist Bit	DB81-3-XX	2203 1316-40	MT3/24-31mm
Alloy Twist Bit	DB81-4-XX	2203 1416-50	MT4/32-50mm
Alloy Twist Bit	DB81-5-XX	2203 1516-100	MT5/51-76mm
Carbide-tipped hollow bit unit	DB82-2-XX	2203 2212-26	MT2/13-26mm
Carbide-tipped hollow bit unit	DB82-3-XX	2203 2316-40	MT3/16-40mm
Carbide-tipped hollow bit unit	DB82-4-XX	2203 2416-50	MT4/16-50mm
Carbide-tipped hollow bit unit	DB82-5-XX	2203 2516-100	MT5/16-100mm
Carbide-tipped hollow bit unit (with cooling system)	DB83-2-XX	2203 3212-26	MT2/12-26mm
Carbide-tipped hollow bit unit (with cooling system)	DB83-3-XX	2203 3316-40	MT3/16-40mm
Carbide-tipped hollow bit unit (with cooling system)	DB83-4-XX	2203 3416-50	MT4/16-50mm
Carbide-tipped Blade Twist Bit Unit (with cooling system)	DB83-5-XX	2203 3516-100	MT5/16-100mm
Carbide-tipped Core Bit Unit	DB84-2-XX	2203 3212-26	MT2/12-26mm
Carbide-tipped Core Bit Unit	DB84-3-XX	2203 3316-40	MT3/16-40mm
Carbide-tipped Core Bit Unit	DB84-4-XX	2203 3416-50	MT4/16-50mm
Carbide-tipped Core Bit Unit	DB84-5-XX	2203 3516-100	MT5/16-100mm
Carbide-tipped Core Bit Unit (with cooling system)	DB85-2-XX	2203 4212-26	MT2/12-26mm
Carbide-tipped Core Bit Unit (with cooling system)	DB85-3-XX	2203 43316-40	MT3/16-40mm
Carbide-tipped Core Bit Unit (with cooling system)	DB85-4-XX	2203 4416-50	MT4/16-50mm
Carbide-tipped Core Bit Unit (with cooling system)	DB85-5-XX	2203 4516-100	MT5/16-100mm
